Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-3, 400 V13kW
Rated permanent current Iu32A
Number of poles3
Depth115mm
Width100mm
Number of auxiliary contacts as normally open contact1
Rated operating voltage690 - 690V
Height180mm
Conditioned rated short-circuit current Iq80kA
Degree of protection (IP), front sideIP65
InterlockableYes
Max. rated operation voltage Ue AC690V
Motor drive integratedNo
Suitable for distribution board installationNo
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Number of switches1
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Suitable for front mounting 4-holeNo
Type of control elementDoor coupling rotary drive
Voltage release optionalNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as safety switchNo
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-23, 400 V15kW
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Switching power at 400 V15kW
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V32A
With pre-assembled cablingNo
Version as reversing switchNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

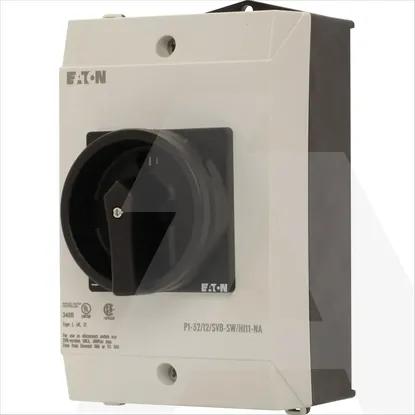

P1-32/I2/SVB-SW/HI11-NA
