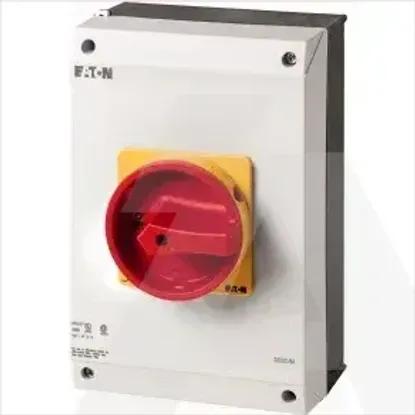

P3-63/I4/SVB/HI11-NA
Code: 1863806
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Rated permanent current Iu63A
Number of switches1
Rated operating voltage690 - 690V
Version as emergency stop installationYes
Rated operation power at AC-3, 400 V30kW
Version as main switchYes
Rated permanent current at AC-23, 400 V63A
Version as safety switchNo
Rated short-time withstand current lcw1.26kA
Number of poles3
Version as reversing switchNo
Switching power at 400 V30kW
Rated operation power at AC-23, 400 V30kW
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
InterlockableYes
Colour control elementRed
Type of control elementDoor coupling rotary drive
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Conditioned rated short-circuit current Iq100kA
Suitable for front mounting centreNo
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Suitable for intermediate mountingNo
Height240mm
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Depth139mm
Width160mm
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
