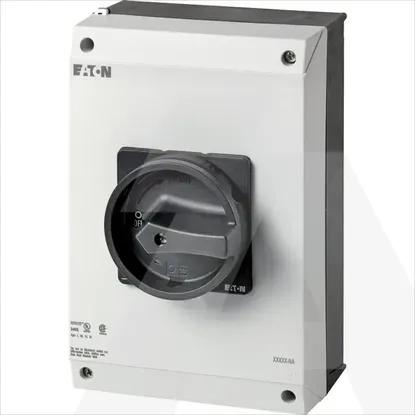

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width160mm
Height240mm
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu63A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact1
Depth139mm
Number of poles3
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq100kA
Number of switches1
Degree of protection (IP), front sideIP65
Motor drive integratedNo
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V30kW
Rated short-time withstand current lcw1.26kA
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchYes
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V63A
Motor drive optionalNo
Suitable for front mounting centreNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V30kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P3-63/I4/SVB-SW/HI11-NA
