Details
- •Low-voltage industrial components

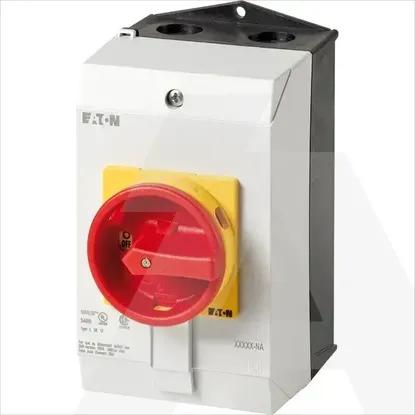

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact0
Number of poles8
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V5.5kW
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Number of switches1
Version as emergency stop installationYes
Type of control elementDoor coupling rotary drive
InterlockableYes
Rated short-time withstand current lcw0.32kA
Version as safety switchNo
Colour control elementRed
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V5.5kW
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Rated permanent current at AC-21, 400 V20A
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Device constructionComplete device in housing
Version as reversing switchNo
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T0-4-8344/I2/SVB-NA
