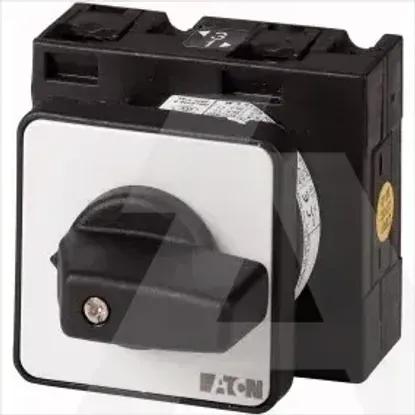

T3-4-8344/I2/SVB-NA
Code: 1863812
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC690V
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationYes
Version as reversing switchNo
Number of switches1
Rated permanent current Iu32A
Rated operation power at AC-3, 400 V11kW
Rated permanent current at AC-23, 400 V32A
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Rated operation power at AC-23, 400 V15kW
Rated short-time withstand current lcw0.65kA
Number of poles8
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Conditioned rated short-circuit current Iq1kA
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Colour control elementRed
Suitable for distribution board installationNo
InterlockableYes
Suitable for front mounting 4-holeNo
Type of control elementDoor coupling rotary drive
Voltage release optionalNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Width187mm
Height135mm
Depth206mm
