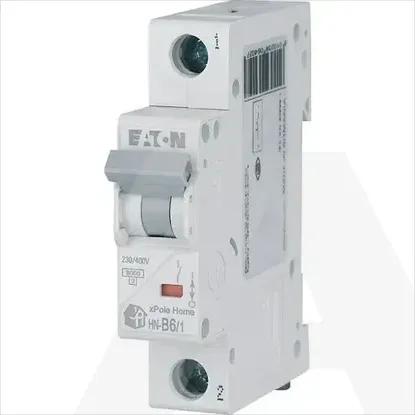

HN-B6/1
Code: 1863847
ManufacturerEaton
Catalog number194818
TypeHN-B6/1
CategoryMiniature circuit breaker (MCB)
EAN code9010238067189
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth44mm
Connectable conductor cross section solid-core1 - 25mm²
Pollution degree3
Ambient temperature during operating-25 - 75°C
Voltage typeAC
Frequency50 - 60Hz
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired1 - 25mm²
Additional equipment possibleYes
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp400kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated insulation voltage Ui400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Current limiting class6
Over voltage category400
Concurrently switching neutral conductorNo
Number of protected poles1
Rated voltage230V
Width in number of modular spacings1
Rated current6A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
