Details
- •Circuit breakers and fuses

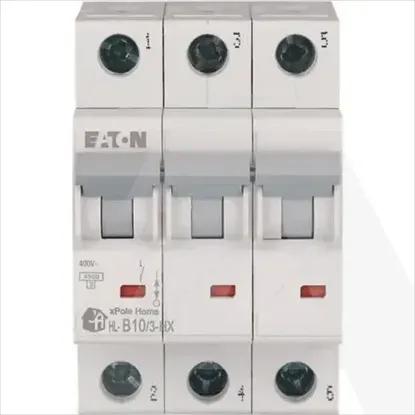

- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated voltage230V
Frequency50 - 60Hz
Rated current10A
Built-in depth44mm
Release characteristicB
Width in number of modular spacings3
Rated insulation voltage Ui440V
Over voltage category3
Current limiting class3
Pollution degree3
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Number of protected poles3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Number of poles (total)3
