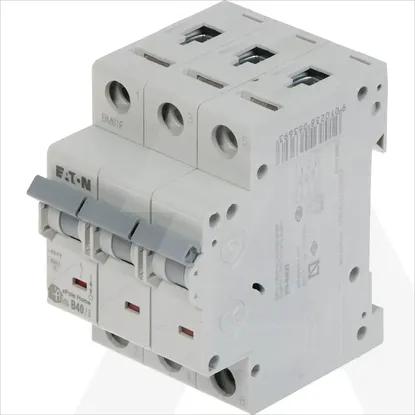

HN-B40/3
Code: 1863859
ManufacturerEaton
Catalog number194885
TypeHN-B40/3
CategoryMiniature circuit breaker (MCB)
EAN code9010238063693
Details
- •Modular circuit-breaker xPole Home, Icn=6kA,
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in depth44mm
Degree of protection (IP)IP20
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Pollution degree3
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Additional equipment possibleYes
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Concurrently switching neutral conductorNo
Explosion-proofNo
Rated current40A
Number of poles (total)3
Width in number of modular spacings3
Voltage typeAC
Number of protected poles3
Release characteristicB
