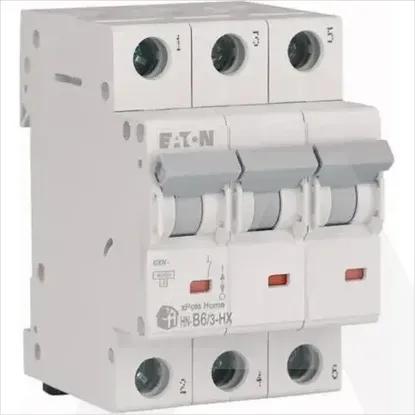

HN-B6/3
Code: 1863865
ManufacturerEaton
Catalog number194878
TypeHN-B6/3
CategoryMiniature circuit breaker (MCB)
EAN code9010238063624
Details
- •Modular circuit-breaker xPole Home, Icn=6kA,
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in depth44mm
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Suitable for flush-mounted installationYes
Over voltage category3
Pollution degree3
Current limiting class3
Frequency50 - 60Hz
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Release characteristicB
Concurrently switching neutral conductorNo
Number of poles (total)3
Width in number of modular spacings3
Voltage typeAC
Rated current6A
Number of protected poles3
