Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated current20A
Built-in depth44mm
Voltage typeAC
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Rated voltage230V
Release characteristicC
Pollution degree3
Number of protected poles1
Over voltage category3
Width in number of modular spacings1
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 75°C
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

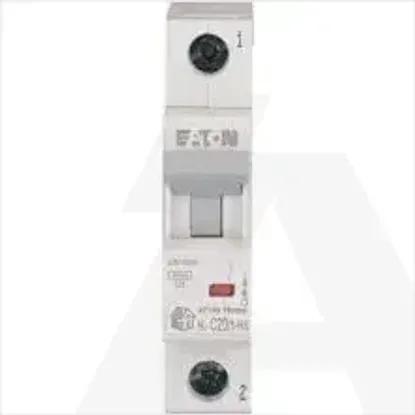

HN-C20/1
