Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth44mm
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Suitable for flush-mounted installationYes
Release characteristicC
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Ambient temperature during operating-25 - 75°C
Rated voltage230V
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)1
Number of protected poles1
Rated current32A
Width in number of modular spacings1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

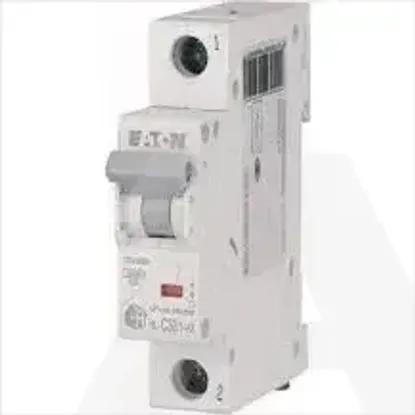

HN-C32/1
