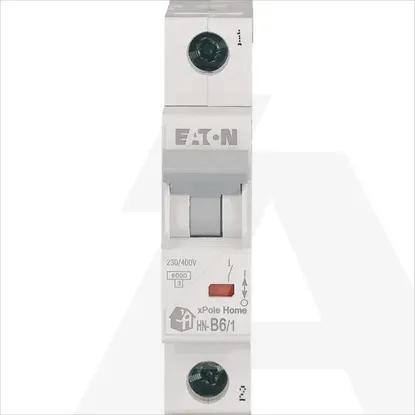

Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth44mm
Pollution degree3
Over voltage category3
Number of protected poles1
Rated current40A
Degree of protection (IP)IP20
Rated voltage230V
Width in number of modular spacings1
Voltage typeAC
Current limiting class3
Release characteristicC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Number of poles (total)1
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core1 - 25mm²
Concurrently switching neutral conductorNo
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
HN-C40/1
