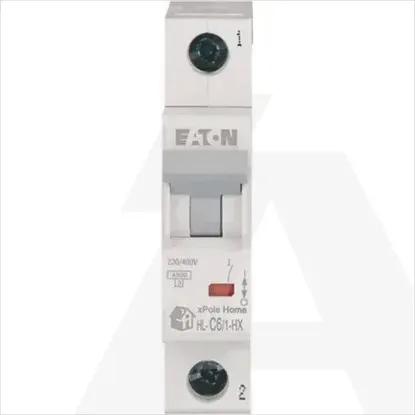

Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Current limiting class3
Voltage typeAC
Frequency50 - 60Hz
Rated current6A
Rated insulation voltage Ui440V
Rated voltage230V
Pollution degree3
Width in number of modular spacings1
Degree of protection (IP)IP20
Built-in depth44mm
Release characteristicC
Over voltage category3
Number of poles (total)1
Suitable for flush-mounted installationYes
Additional equipment possibleYes
Number of protected poles1
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
