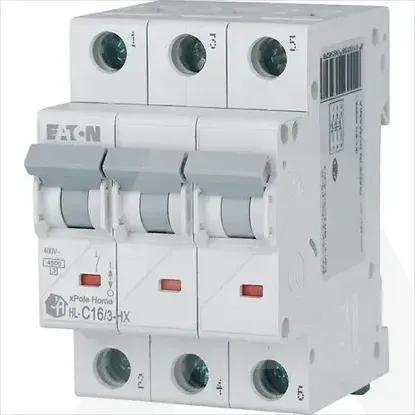

HN-C16/3
Code: 1863887
ManufacturerEaton
Catalog number194891
TypeHN-C16/3
CategoryMiniature circuit breaker (MCB)
EAN code9010238063754
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Over voltage category3
Current limiting class3
Rated insulation voltage Ui440V
Built-in depth44mm
Frequency50 - 60Hz
Voltage typeAC
Rated voltage230V
Ambient temperature during operating-25 - 75°C
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of protected poles3
Width in number of modular spacings3
Rated current16A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
