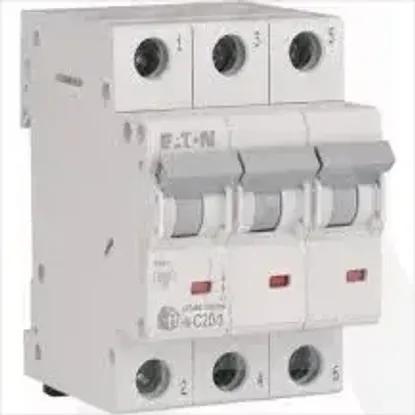

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Built-in depth44mm
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Pollution degree3
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Over voltage category3
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Release characteristicC
Rated current20A
Voltage typeAC
Number of poles (total)3
Number of protected poles3
Concurrently switching neutral conductorNo
Width in number of modular spacings3
