Details
- •Low-voltage industrial components

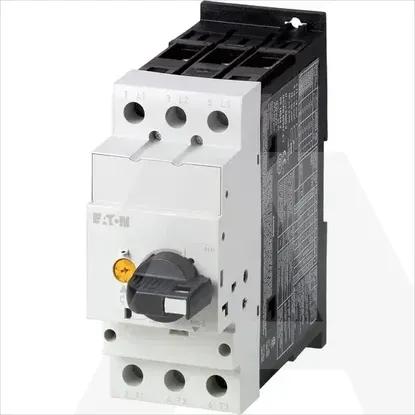

- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Depth171mm
Width55mm
Height140mm
With integrated under voltage releaseNo
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
Degree of protection (IP)IP20
With integrated auxiliary switchNo
With thermal protectionYes
Adjustment range undelayed short-circuit release775 - 775A
Switch off techniqueThermomagnetic
Phase failure sensitiveYes
Rated operation power at AC-3, 230 V14kW
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V25kW
Rated permanent current Iu50A
Number of poles3
Overload release current setting40 - 50A
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
PKZM4-50/AK
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Depth
171mm
Width
55mm
Height
140mm
With integrated under voltage release
Rated operating voltage
690 .. 690V
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Degree of protection (IP)
IP20
With integrated auxiliary switch
With thermal protection
Adjustment range undelayed short-circuit release
775 .. 775A
Switch off technique
Thermomagnetic
Phase failure sensitive
Rated operation power at AC-3, 230 V
14kW
Device construction
Built-in device fixed built-in technique
Rated operation power at AC-3, 400 V
25kW
Rated permanent current Iu
50A
Number of poles
3
Overload release current setting
40 .. 50A
Rated short-circuit breaking capacity lcu at 400 V, AC
50kA
