Details
- •Low-voltage industrial components

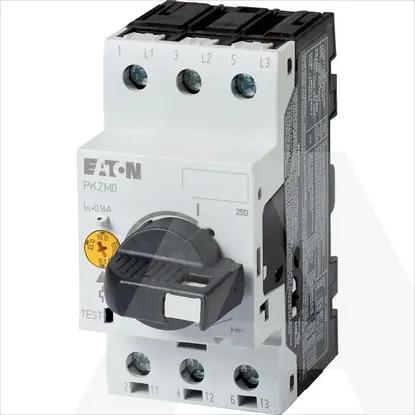

- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
With integrated under voltage releaseNo
Height94mm
Power loss5.33W
With integrated auxiliary switchNo
Depth76mm
Width45mm
Degree of protection (IP)IP20
Switch off techniqueThermomagnetic
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
With thermal protectionNo
Adjustment range undelayed short-circuit release15.5 - 15.5A
Phase failure sensitiveYes
Rated operation power at AC-3, 230 V0.12kW
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V0.25kW
Rated permanent current Iu1A
Number of poles3
Overload release current setting0.63 - 1A
Rated short-circuit breaking capacity lcu at 400 V, AC150kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
PKZM0-1/AK
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operating voltage
690 .. 690V
With integrated under voltage release
Height
94mm
Power loss
5.33W
With integrated auxiliary switch
Depth
76mm
Width
45mm
Degree of protection (IP)
IP20
Switch off technique
Thermomagnetic
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
With thermal protection
Adjustment range undelayed short-circuit release
15.5 .. 15.5A
Phase failure sensitive
Rated operation power at AC-3, 230 V
0.12kW
Device construction
Built-in device fixed built-in technique
Rated operation power at AC-3, 400 V
0.25kW
Rated permanent current Iu
1A
Number of poles
3
Overload release current setting
0.63 .. 1A
Rated short-circuit breaking capacity lcu at 400 V, AC
150kA
