Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq4kA
Rated permanent current Iu100A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Number of poles3
Rated operation power at AC-3, 400 V37kW
Type of control elementToggle
Version as maintenance-/service switchNo
Version as safety switchNo
Rated operation power at AC-23, 400 V55kW
Suitable for floor mountingYes
Motor drive integratedNo
Version as main switchNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
InterlockableNo
Colour control elementRed
Number of switches1
Rated short-time withstand current lcw2kA
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V100A
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V100A
Suitable for front mounting centreNo
Switching power at 400 V55kW
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

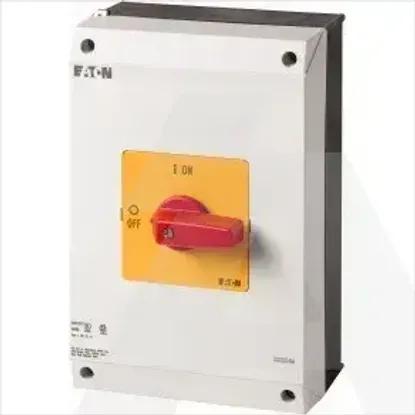

P3-100/I5-RT-NA
