Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Modular versionNo
Number of normally closed contacts as main contact0
Width90mm
Rated operation power NEMA74.6kW
Operating voltage at AC 60 Hz230 - 690V
Rated control supply voltage Us at DC24 - 24V
Type of electrical connection of main circuitScrew connection
Depth175mm
Height170mm
Rated control supply voltage Us at AC 60HZ0 - 0V
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-1, 400 V160A
Rated operation power at AC-4, 400 V28kW
Rated operation current Ie at AC-4, 400 V55A
Voltage type for actuatingDC
Rated operation power at AC-3, 400 V55kW
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V115A
Rated control supply voltage Us at AC 50HZ0 - 0V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

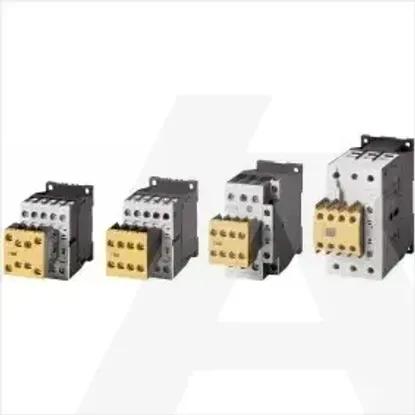

DILMS115-22(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of normally open contacts as main contact
3
Modular version
Number of normally closed contacts as main contact
0
Width
90mm
Rated operation power NEMA
74.6kW
Operating voltage at AC 60 Hz
230 .. 690V
Rated control supply voltage Us at DC
24 .. 24V
Type of electrical connection of main circuit
Screw connection
Depth
175mm
Height
170mm
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation current Ie at AC-1, 400 V
160A
Rated operation power at AC-4, 400 V
28kW
Rated operation current Ie at AC-4, 400 V
55A
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
55kW
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie at AC-3, 400 V
115A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
