Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height69mm
Width45mm
Number of auxiliary contacts as normally closed contact3
Rated operation current Ie at AC-3, 400 V12A
Modular versionNo
Depth117mm
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-4, 400 V3kW
Operating voltage at AC 50 Hz24 - 690V
Rated operation power NEMA7.4kW
Operating voltage at AC 60 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-4, 400 V7A
Rated operation power at AC-3, 400 V5.5kW
Voltage type for actuatingDC
Rated control supply voltage Us at DC24 - 24V
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

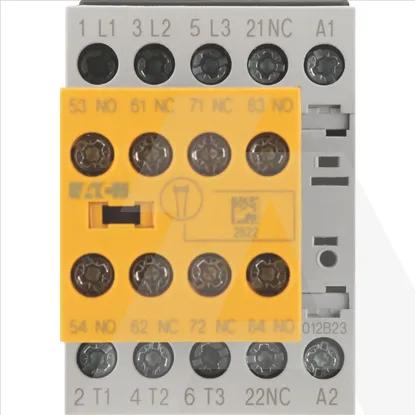

DILMS12-23(24VDC)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Height
69mm
Width
45mm
Number of auxiliary contacts as normally closed contact
3
Rated operation current Ie at AC-3, 400 V
12A
Modular version
Depth
117mm
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
2
Rated operation power at AC-4, 400 V
3kW
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation power NEMA
7.4kW
Operating voltage at AC 60 Hz
24 .. 690V
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-1, 400 V
22A
Rated operation current Ie at AC-4, 400 V
7A
Rated operation power at AC-3, 400 V
5.5kW
Voltage type for actuating
DC
Rated control supply voltage Us at DC
24 .. 24V
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
