Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height69mm
Width45mm
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Depth117mm
Modular versionNo
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact3
Rated operation current Ie at AC-1, 400 V22A
Rated control supply voltage Us at AC 50HZ0 - 0V
Operating voltage at AC 60 Hz24 - 690V
Voltage type for actuatingDC
Rated control supply voltage Us at AC 60HZ0 - 0V
Operating voltage at AC 50 Hz24 - 690V
Rated control supply voltage Us at DC24 - 24V
Rated operation current Ie at AC-3, 400 V12A
Rated operation power at AC-4, 400 V3kW
Rated operation power NEMA7.4kW
Rated operation current Ie at AC-4, 400 V7A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

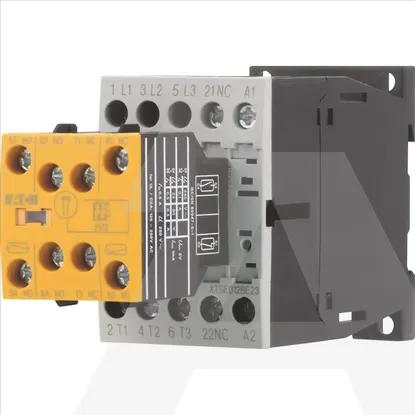

DILMS12-R23(24VDC)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Height
69mm
Width
45mm
Rated operation power at AC-3, 400 V
5.5kW
Number of auxiliary contacts as normally open contact
2
Number of normally open contacts as main contact
3
Depth
117mm
Modular version
Number of normally closed contacts as main contact
0
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
3
Rated operation current Ie at AC-1, 400 V
22A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Operating voltage at AC 60 Hz
24 .. 690V
Voltage type for actuating
DC
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Operating voltage at AC 50 Hz
24 .. 690V
Rated control supply voltage Us at DC
24 .. 24V
Rated operation current Ie at AC-3, 400 V
12A
Rated operation power at AC-4, 400 V
3kW
Rated operation power NEMA
7.4kW
Rated operation current Ie at AC-4, 400 V
7A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
