Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Height85mm
Depth138mm
Modular versionNo
Rated operation power at AC-3, 400 V7.5kW
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact3
Rated operation current Ie at AC-3, 400 V17A
Rated operation current Ie at AC-1, 400 V40A
Rated control supply voltage Us at AC 50HZ110 - 110V
Rated control supply voltage Us at AC 60HZ120 - 120V
Rated control supply voltage Us at DC0 - 0V
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Voltage type for actuatingAC
Rated operation current Ie at AC-4, 400 V10A
Rated operation power at AC-4, 400 V4.5kW
Rated operation power NEMA7.4kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

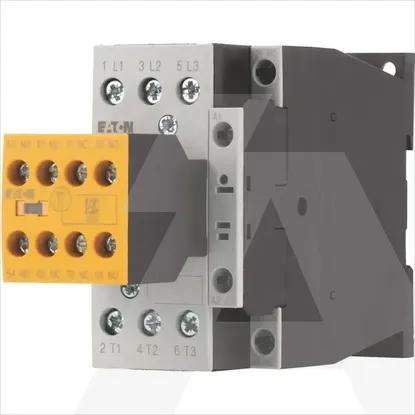

DILMS17-23(110V50HZ,120V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Width
45mm
Height
85mm
Depth
138mm
Modular version
Rated operation power at AC-3, 400 V
7.5kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
3
Rated operation current Ie at AC-3, 400 V
17A
Rated operation current Ie at AC-1, 400 V
40A
Rated control supply voltage Us at AC 50HZ
110 .. 110V
Rated control supply voltage Us at AC 60HZ
120 .. 120V
Rated control supply voltage Us at DC
0 .. 0V
Type of electrical connection of main circuit
Screw connection
Operating voltage at AC 50 Hz
24 .. 690V
Operating voltage at AC 60 Hz
24 .. 690V
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
10A
Rated operation power at AC-4, 400 V
4.5kW
Rated operation power NEMA
7.4kW
