Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth138mm
Number of auxiliary contacts as normally open contact2
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation current Ie at AC-1, 400 V45A
Modular versionNo
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of auxiliary contacts as normally closed contact3
Rated control supply voltage Us at DC24 - 24V
Width45mm
Rated operation current Ie at AC-3, 400 V25A
Rated operation power at AC-4, 400 V6kW
Operating voltage at AC 60 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 400 V11kW
Operating voltage at AC 50 Hz24 - 690V
Number of normally open contacts as main contact3
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Height85mm
Rated operation current Ie at AC-4, 400 V13A
Rated operation power NEMA11kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

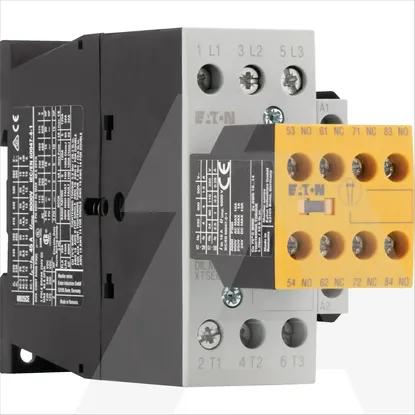

DILMS25-23(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Depth
138mm
Number of auxiliary contacts as normally open contact
2
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated operation current Ie at AC-1, 400 V
45A
Modular version
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Number of auxiliary contacts as normally closed contact
3
Rated control supply voltage Us at DC
24 .. 24V
Width
45mm
Rated operation current Ie at AC-3, 400 V
25A
Rated operation power at AC-4, 400 V
6kW
Operating voltage at AC 60 Hz
24 .. 690V
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 400 V
11kW
Operating voltage at AC 50 Hz
24 .. 690V
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Number of normally closed contacts as main contact
0
Height
85mm
Rated operation current Ie at AC-4, 400 V
13A
Rated operation power NEMA
11kW
