Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Depth147mm
Number of normally closed contacts as main contact0
Width55mm
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Height115mm
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V50A
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation current Ie at AC-1, 400 V80A
Rated control supply voltage Us at DC24 - 24V
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V21A
Operating voltage at AC 50 Hz230 - 690V
Voltage type for actuatingDC
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation power at AC-4, 400 V10kW
Rated operation power NEMA29.8kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

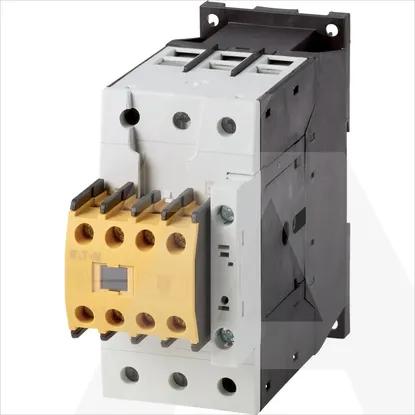

DILMS50-22(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Modular version
Depth
147mm
Number of normally closed contacts as main contact
0
Width
55mm
Number of auxiliary contacts as normally open contact
2
Number of normally open contacts as main contact
3
Height
115mm
Rated operation power at AC-3, 400 V
22kW
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie at AC-3, 400 V
50A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated operation current Ie at AC-1, 400 V
80A
Rated control supply voltage Us at DC
24 .. 24V
Operating voltage at AC 60 Hz
230 .. 690V
Rated operation current Ie at AC-4, 400 V
21A
Operating voltage at AC 50 Hz
230 .. 690V
Voltage type for actuating
DC
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated operation power at AC-4, 400 V
10kW
Rated operation power NEMA
29.8kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
