Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth117mm
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of auxiliary contacts as normally closed contact3
Rated control supply voltage Us at DC24 - 24V
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 60 Hz24 - 690V
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V7A
Rated control supply voltage Us at AC 50HZ0 - 0V
Modular versionNo
Rated operation power at AC-3, 400 V3kW
Width45mm
Height69mm
Rated operation power at AC-4, 400 V2.2kW
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Rated operation power NEMA2.2kW
Voltage type for actuatingDC
Rated operation current Ie at AC-4, 400 V5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

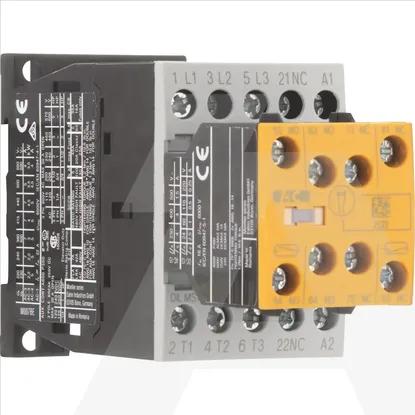

DILMS7-R23(24VDC)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Depth
117mm
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Number of auxiliary contacts as normally closed contact
3
Rated control supply voltage Us at DC
24 .. 24V
Type of electrical connection of main circuit
Screw connection
Operating voltage at AC 60 Hz
24 .. 690V
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-3, 400 V
7A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Modular version
Rated operation power at AC-3, 400 V
3kW
Width
45mm
Height
69mm
Rated operation power at AC-4, 400 V
2.2kW
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-1, 400 V
22A
Number of auxiliary contacts as normally open contact
2
Number of normally open contacts as main contact
3
Rated operation power NEMA
2.2kW
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
5A
