Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height170mm
Width90mm
Modular versionNo
Depth175mm
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V80A
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V37kW
Number of auxiliary contacts as normally open contact2
Rated operation current Ie at AC-1, 400 V110A
Rated control supply voltage Us at AC 60HZ240 - 240V
Rated control supply voltage Us at DC0 - 0V
Rated control supply voltage Us at AC 50HZ230 - 230V
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz230 - 690V
Voltage type for actuatingAC
Rated operation current Ie at AC-4, 400 V40A
Operating voltage at AC 60 Hz230 - 690V
Rated operation power at AC-4, 400 V20kW
Rated operation power NEMA44.7kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

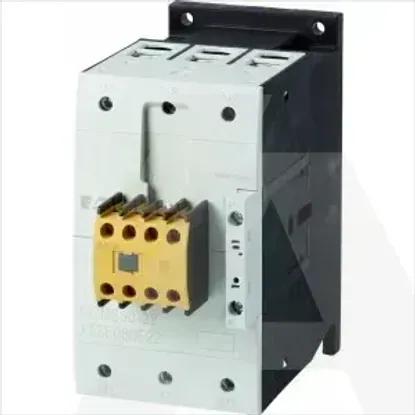

DILMS80-22(230V50HZ,240V60HZ)
