Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Height170mm
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Depth175mm
Modular versionNo
Rated operation power at AC-3, 400 V37kW
Rated operation current Ie at AC-1, 400 V110A
Number of normally closed contacts as main contact0
Width90mm
Rated operation current Ie at AC-3, 400 V80A
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at DC24 - 24V
Operating voltage at AC 60 Hz230 - 690V
Voltage type for actuatingDC
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V40A
Rated operation power at AC-4, 400 V20kW
Rated operation power NEMA44.7kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

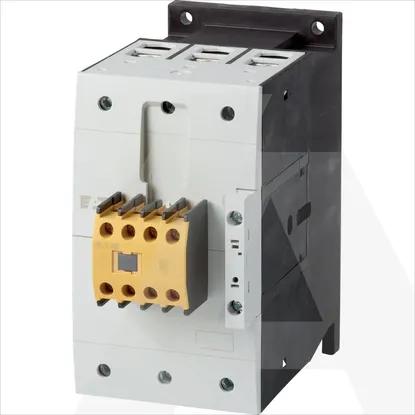

DILMS80-22(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of normally open contacts as main contact
3
Height
170mm
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
2
Depth
175mm
Modular version
Rated operation power at AC-3, 400 V
37kW
Rated operation current Ie at AC-1, 400 V
110A
Number of normally closed contacts as main contact
0
Width
90mm
Rated operation current Ie at AC-3, 400 V
80A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at DC
24 .. 24V
Operating voltage at AC 60 Hz
230 .. 690V
Voltage type for actuating
DC
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation current Ie at AC-4, 400 V
40A
Rated operation power at AC-4, 400 V
20kW
Rated operation power NEMA
44.7kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
