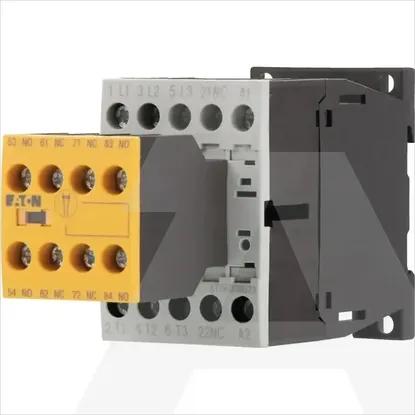

DILMS9-23(24VDC)

Operating voltage at AC 60 Hz

24 - 690V

Rated control supply voltage Us at AC 50HZ

0 - 0V

Type of electrical connection of main circuit

Screw connection

Number of normally closed contacts as main contact

0

Rated operation current Ie at AC-4, 400 V

6A

Rated operation power at AC-4, 400 V

2.5kW

Number of auxiliary contacts as normally closed contact

3

Voltage type for actuating

DC

Operating voltage at AC 50 Hz

24 - 690V

Height

69mm

Number of auxiliary contacts as normally open contact

2

Width

45mm

Number of normally open contacts as main contact

3

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated operation power at AC-3, 400 V

4kW

Rated operation current Ie at AC-3, 400 V

9A

Modular version

No

Depth

117mm

Rated operation power NEMA

3.7kW

Rated control supply voltage Us at DC

24 - 24V

Rated operation current Ie at AC-1, 400 V

22A
