Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at AC-3, 400 V9A
Height69mm
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally open contact2
Depth117mm
Rated control supply voltage Us at DC24 - 24V
Number of auxiliary contacts as normally closed contact3
Width45mm
Rated control supply voltage Us at AC 50HZ0 - 0V
Voltage type for actuatingDC
Rated operation current Ie at AC-4, 400 V6A
Rated operation current Ie at AC-1, 400 V22A
Operating voltage at AC 60 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Number of normally closed contacts as main contact0
Rated control supply voltage Us at AC 60HZ0 - 0V
Modular versionNo
Number of normally open contacts as main contact3
Operating voltage at AC 50 Hz24 - 690V
Rated operation power NEMA3.7kW
Rated operation power at AC-4, 400 V2.5kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

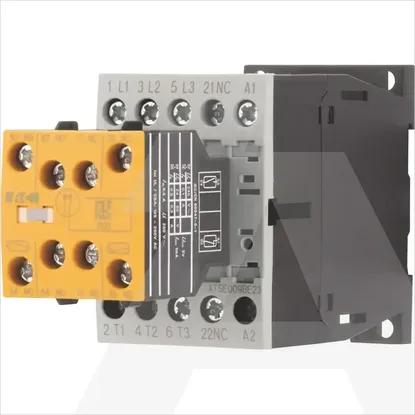

DILMS9-R23(24VDC)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at AC-3, 400 V
9A
Height
69mm
Rated operation power at AC-3, 400 V
4kW
Number of auxiliary contacts as normally open contact
2
Depth
117mm
Rated control supply voltage Us at DC
24 .. 24V
Number of auxiliary contacts as normally closed contact
3
Width
45mm
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
6A
Rated operation current Ie at AC-1, 400 V
22A
Operating voltage at AC 60 Hz
24 .. 690V
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Modular version
Number of normally open contacts as main contact
3
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation power NEMA
3.7kW
Rated operation power at AC-4, 400 V
2.5kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
