Details
- •Devices for distribution board-/surface mounting

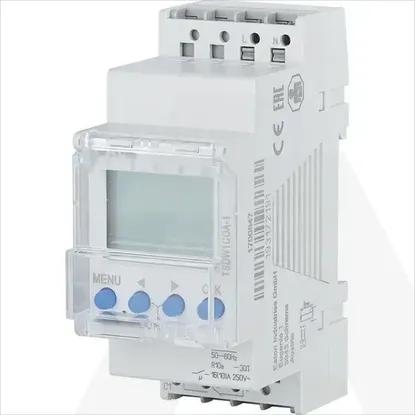

- •Digital time switch for distribution board
- •1 KOM
- •EATON
Technical specifications
Depth69.2mm
Number of contacts1
Width35.8mm
Mounting methodDIN rail
Height90.1mm
Astro programYes
Number of memory locations56
Mains synchronousNo
Suitable for manual operationYes
Weekly programYes
Contact typeChange-over contact (NO/NC)
Quartz controlledYes
Number of channels1
Random programNo
Width in number of modular spacings2
Output signalOther
24 h programYes
GPS (global positioning system)No
Automatic switching summer-/winter timeYes
Switching preselectionYes
Impulse programNo
Annual programNo
Potential free switch contactYes
Holiday programYes
60 min programNo
External programmingYes
Radio-controlled (DCF77)No
Radio-controlledNo
Voltage type of supply voltageAC
Cycle programNo
Supply voltage230 - 240V
Autonomy in years10
Text guidance in displayYes
Accuracy per day1s
Shortest switching time channel 11min
External pushbutton inputNo
Degree of protection (IP)IP20
Max. switching power LED600W
Frequency supply voltage50 - 60Hz
With memory cardNo
Autonomy in hours0
Shortest switching time channel 20min
Nominal switching current at 250 V AC16A
Hour meterNo
