Details
- •Devices for distribution board-/surface mounting

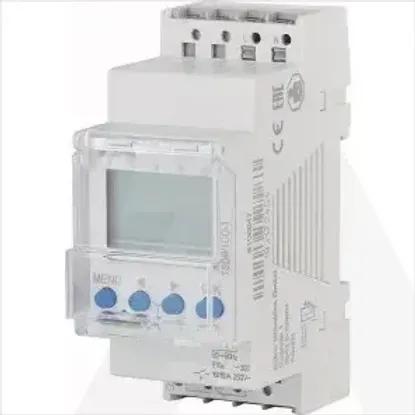

- •Digital time switch for distribution board
- •1 KOM
- •EATON
Technical specifications
24 h programYes
Height90.1mm
Annual programNo
Astro programNo
Contact typeChange-over contact (NO/NC)
Weekly programYes
GPS (global positioning system)No
Output signalOther
Width35.8mm
Number of channels1
60 min programNo
Number of contacts1
Holiday programYes
Number of memory locations56
Width in number of modular spacings2
Radio-controlledNo
Mounting methodDIN rail
Depth69.2mm
Random programNo
Autonomy in years10
Impulse programNo
Degree of protection (IP)IP20
Hour meterYes
Shortest switching time channel 20min
Potential free switch contactYes
Cycle programNo
Shortest switching time channel 11min
Radio-controlled (DCF77)No
Accuracy per day0.5s
Text guidance in displayYes
External programmingYes
Nominal switching current at 250 V AC16A
Supply voltage230 - 240V
Frequency supply voltage50 - 60Hz
Voltage type of supply voltageAC
External pushbutton inputNo
Automatic switching summer-/winter timeYes
Suitable for manual operationYes
Autonomy in hours0
Quartz controlledYes
Switching preselectionYes
Mains synchronousNo
Max. switching power LED600W
With memory cardNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
TSDW1CO-1
