Details
- •Devices for distribution board-/surface mounting

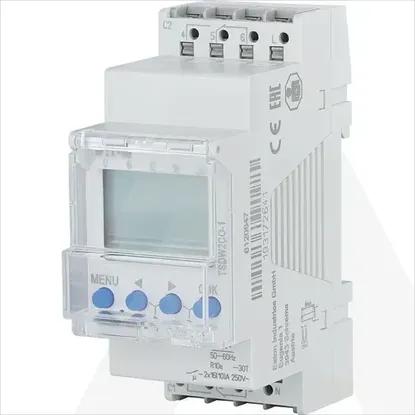

- •Digital time switch for distribution board
- •1 KOM
- •EATON
Technical specifications
Cycle programNo
Weekly programYes
GPS (global positioning system)No
60 min programNo
Astro programNo
Depth69.2mm
Annual programNo
Number of contacts2
24 h programYes
Random programNo
Number of memory locations56
Mounting methodDIN rail
Contact typeChange-over contact (NO/NC)
Impulse programNo
Holiday programYes
Number of channels2
Output signalOther
Radio-controlledNo
Width in number of modular spacings2
Width35.8mm
Height90.1mm
With memory cardNo
Max. switching power LED600W
Nominal switching current at 250 V AC16A
External programmingYes
Suitable for manual operationYes
Text guidance in displayYes
Hour meterYes
Autonomy in years10
Switching preselectionYes
Autonomy in hours0
Degree of protection (IP)IP20
Quartz controlledYes
Mains synchronousNo
External pushbutton inputNo
Accuracy per day0.5s
Frequency supply voltage50 - 60Hz
Supply voltage230 - 240V
Potential free switch contactYes
Shortest switching time channel 21min
Voltage type of supply voltageAC
Shortest switching time channel 11min
Radio-controlled (DCF77)No
Automatic switching summer-/winter timeYes
