Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Mains voltage380 - 480V
Mains frequency50/60 Hz
Number of digital inputs6
Max. output at quadratic load at rated output voltage37kW
Max. output at linear load at rated output voltage37kW
Max. output voltage480V
Nominal output current I2N73A
Number of analogue inputs2
Number of phases output3
Number of phases input3
Relative symmetric net frequency tolerance5%
With control elementYes
Number of analogue outputs2
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Application in industrial area permittedYes
Number of digital outputs3
Supporting protocol for CANYes
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for ModbusYes
Supporting protocol for PROFINET IOYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for KNXNo
Supporting protocol for PROFINET CBANo
Supporting protocol for TCP/IPYes
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetYes
Supporting protocol for LONYes
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SafetyBUS pNo
4-quadrant operation possibleNo
Supporting protocol for other bus systemsYes
Number of HW-interfaces RS-2320
Number of interfaces PROFINET0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other2
With PC connectionYes
Number of HW-interfaces parallel2
Number of HW-interfaces RS-4220
Supporting protocol for BACnetYes
Number of HW-interfaces USB1
Integrated breaking resistanceNo
Width203mm
Degree of protection (NEMA)1
Number of HW-interfaces serial TTY0
Height636mm
Degree of protection (IP)IP55
Type of converterU converter
With optical interfaceNo
Number of HW-interfaces RS-4851
Depth257mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

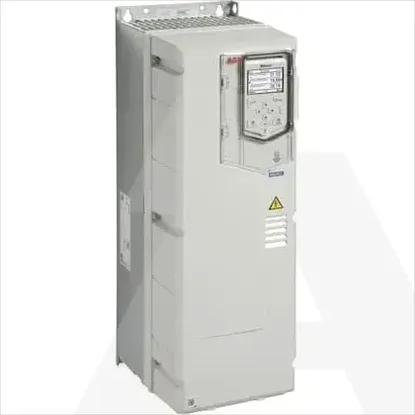

ACH580-01-073A-4+B056 Pld: 37kW, Ild: 68A
