Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Max. output frequency500Hz
Number of digital outputs3
Relative symmetric net voltage tolerance10%
Number of phases output3
Relative symmetric net frequency tolerance5%
Number of digital inputs6
Mains voltage380 - 480V
Number of analogue outputs2
Nominal output current I2N88A
Max. output voltage480V
Mains frequency50/60 Hz
Max. output at linear load at rated output voltage45kW
Number of analogue inputs2
Application in industrial area permittedYes
With control elementYes
Number of phases input3
Max. output at quadratic load at rated output voltage45kW
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNetYes
Supporting protocol for PROFIBUSYes
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUSNo
Supporting protocol for LONYes
Supporting protocol for CANYes
Application in domestic- and commercial area permittedYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for KNXNo
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for SUCONETNo
Number of HW-interfaces RS-4220
Supporting protocol for other bus systemsYes
Supporting protocol for BACnetYes
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4851
Degree of protection (IP)IP55
Type of converterU converter
Number of interfaces PROFINET0
Number of HW-interfaces parallel2
Number of HW-interfaces serial TTY0
With optical interfaceNo
Number of HW-interfaces other2
With PC connectionYes
Number of HW-interfaces USB1
Integrated breaking resistanceNo
Height732mm
Degree of protection (NEMA)1
4-quadrant operation possibleNo
Width203mm
Depth295mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

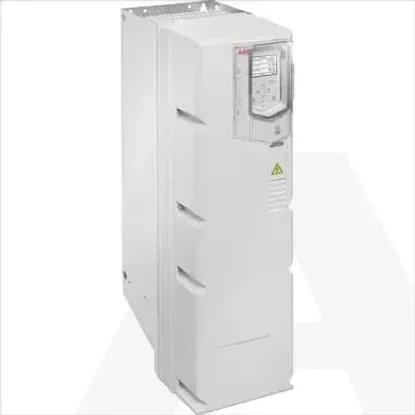

ACH580-01-088A-4+B056 Pld: 45kW, Ild: 83A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Max. output frequency
500Hz
Number of digital outputs
3
Relative symmetric net voltage tolerance
10%
Number of phases output
3
Relative symmetric net frequency tolerance
5%
Number of digital inputs
6
Mains voltage
380 .. 480V
Number of analogue outputs
2
Nominal output current I2N
88A
Max. output voltage
480V
Mains frequency
50/60 Hz
Max. output at linear load at rated output voltage
45kW
Number of analogue inputs
2
Application in industrial area permitted
With control element
Number of phases input
3
Max. output at quadratic load at rated output voltage
45kW
Supporting protocol for PROFINET CBA
Supporting protocol for PROFINET IO
Supporting protocol for Data-Highway
Supporting protocol for PROFIsafe
Supporting protocol for DeviceNet
Supporting protocol for PROFIBUS
Supporting protocol for ASI
Supporting protocol for Modbus
Supporting protocol for TCP/IP
Supporting protocol for SERCOS
Supporting protocol for INTERBUS
Supporting protocol for LON
Supporting protocol for CAN
Application in domestic- and commercial area permitted
Supporting protocol for Foundation Fieldbus
Supporting protocol for AS-Interface Safety at Work
Supporting protocol for KNX
Supporting protocol for DeviceNet Safety
Supporting protocol for INTERBUS-Safety
Supporting protocol for EtherNet/IP
Supporting protocol for SUCONET
Number of HW-interfaces RS-422
0
Supporting protocol for other bus systems
Supporting protocol for BACnet
Number of HW-interfaces industrial Ethernet
0
Supporting protocol for SafetyBUS p
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
1
Degree of protection (IP)
IP55
Type of converter
U converter
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
2
Number of HW-interfaces serial TTY
0
With optical interface
Number of HW-interfaces other
2
With PC connection
Number of HW-interfaces USB
1
Integrated breaking resistance
Height
732mm
Degree of protection (NEMA)
1
4-quadrant operation possible
Width
203mm
Depth
295mm
