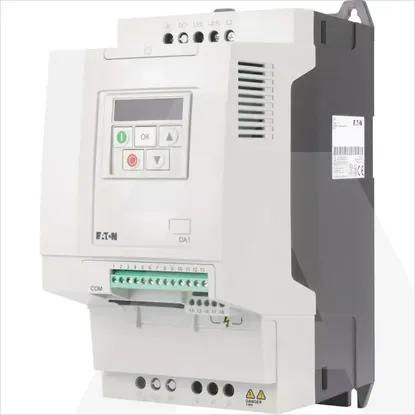

Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •EATON

Technical specifications

Height273mm
Width131mm
Number of HW-interfaces RS-2320
Number of digital outputs2
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
Depth204mm
Number of analogue outputs2
With control elementYes
Power consumption209W
Supporting protocol for LONNo
Number of digital inputs5
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for ASINo
With PC connectionYes
Supporting protocol for Data-HighwayNo
Number of HW-interfaces other0
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
With optical interfaceNo
Supporting protocol for TCP/IPYes
Supporting protocol for CANYes
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Type of converterU converter
Number of interfaces PROFINET0
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IOYes
Integrated breaking resistanceYes
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage5.5kW
Relative symmetric net frequency tolerance10%
Relative symmetric net voltage tolerance10%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Degree of protection (NEMA)Other
Max. output voltage500V
Degree of protection (IP)IP20
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage5.5kW
Nominal output current I2N14A
