Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of HW-interfaces RS-2320
Width173mm
Number of analogue outputs2
Number of HW-interfaces RS-4851
Number of digital inputs5
Number of HW-interfaces RS-4220
Height450mm
Number of HW-interfaces other0
Number of HW-interfaces parallel0
With optical interfaceNo
Depth240mm
Number of analogue inputs2
Number of digital outputs2
Supporting protocol for LONNo
Supporting protocol for ASINo
Power consumption297W
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
With control elementYes
Supporting protocol for TCP/IPYes
Number of HW-interfaces industrial Ethernet0
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Max. output frequency500Hz
Supporting protocol for DeviceNetYes
Number of phases output3
4-quadrant operation possibleYes
Relative symmetric net voltage tolerance10%
Supporting protocol for SUCONETNo
Degree of protection (IP)IP55
Max. output at quadratic load at rated output voltage11kW
Type of converterU converter
Number of interfaces PROFINET0
Application in domestic- and commercial area permittedYes
Mains voltage380 - 480V
Supporting protocol for other bus systemsYes
Relative symmetric net frequency tolerance10%
Max. output at linear load at rated output voltage11kW
Supporting protocol for SERCOSNo
Number of phases input3
With PC connectionYes
Supporting protocol for ModbusYes
Application in industrial area permittedYes
Supporting protocol for INTERBUS-SafetyNo
Integrated breaking resistanceYes
Mains frequency50/60 Hz
Supporting protocol for Data-HighwayNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Max. output voltage500V
Supporting protocol for PROFINET IOYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Nominal output current I2N24A
Degree of protection (NEMA)12
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

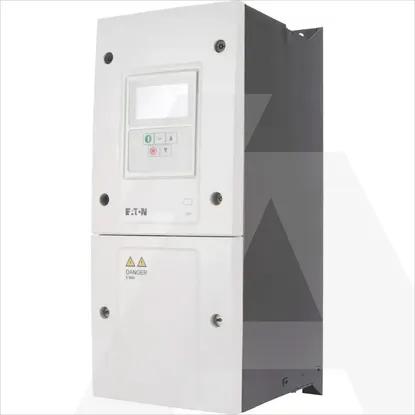

DA1-34024FB-B55C
