Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Height419mm
Power consumption375W
Width173mm
Depth241mm
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
Number of digital inputs5
Supporting protocol for LONNo
Number of analogue outputs2
Number of digital outputs2
With control elementYes
Number of HW-interfaces RS-2320
Number of HW-interfaces other0
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
With optical interfaceNo
Supporting protocol for TCP/IPYes
Supporting protocol for CANYes
Supporting protocol for DeviceNetYes
Supporting protocol for KNXNo
Number of HW-interfaces serial TTY0
Supporting protocol for ModbusYes
Supporting protocol for ASINo
Number of HW-interfaces RS-4220
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIBUSYes
With PC connectionYes
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Mains frequency50/60 Hz
Mains voltage380 - 480V
Supporting protocol for INTERBUS-SafetyNo
Number of phases input3
Max. output at quadratic load at rated output voltage15kW
Number of phases output3
4-quadrant operation possibleYes
Application in domestic- and commercial area permittedYes
Type of converterU converter
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SafetyBUS pNo
Integrated breaking resistanceYes
Number of interfaces PROFINET0
Max. output voltage500V
Supporting protocol for PROFINET IOYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Max. output frequency500Hz
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Max. output at linear load at rated output voltage15kW
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance10%
Nominal output current I2N30A
Degree of protection (NEMA)Other
Application in industrial area permittedYes
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

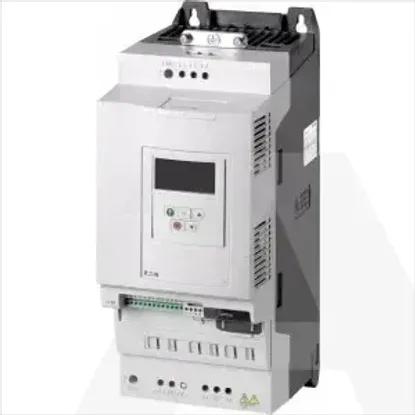

DA1-34030FB-B20C
