Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Width173mm
Supporting protocol for CANYes
Number of HW-interfaces USB0
With optical interfaceNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces other0
Power consumption444W
Number of HW-interfaces serial TTY0
Depth241mm
Height419mm
Supporting protocol for LONNo
Number of digital outputs2
Supporting protocol for INTERBUSNo
With control elementYes
Number of analogue outputs2
Number of HW-interfaces RS-4851
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
Number of digital inputs5
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Number of analogue inputs2
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Mains voltage380 - 480V
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
Integrated breaking resistanceYes
With PC connectionYes
Max. output at linear load at rated output voltage18.5kW
Max. output frequency500Hz
Application in domestic- and commercial area permittedYes
Type of converterU converter
Number of phases input3
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Number of phases output3
Application in industrial area permittedYes
Degree of protection (IP)IP20
Supporting protocol for other bus systemsYes
Supporting protocol for SERCOSNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage18.5kW
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SUCONETNo
Relative symmetric net frequency tolerance10%
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Degree of protection (NEMA)Other
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Max. output voltage500V
Supporting protocol for BACnetNo
Nominal output current I2N39A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

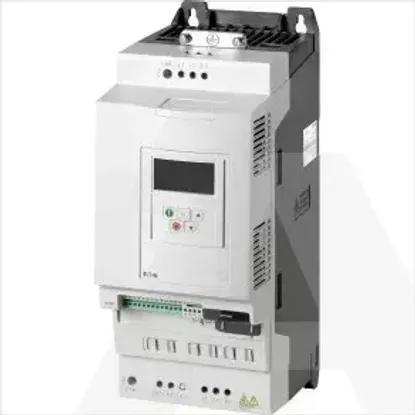

DA1-34039FB-B20C
