Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Power consumption506W
Depth240mm
Number of digital outputs2
With control elementYes
Width173mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of analogue inputs2
Height450mm
Number of digital inputs5
Number of analogue outputs2
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
With optical interfaceNo
Supporting protocol for ASINo
Number of HW-interfaces USB0
Supporting protocol for DeviceNetYes
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Number of HW-interfaces other0
Supporting protocol for Data-HighwayNo
Supporting protocol for TCP/IPYes
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Number of HW-interfaces serial TTY0
Type of converterU converter
Supporting protocol for SUCONETNo
4-quadrant operation possibleYes
Supporting protocol for SERCOSNo
With PC connectionYes
Mains frequency50/60 Hz
Degree of protection (IP)IP55
Mains voltage380 - 480V
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Application in industrial area permittedYes
Max. output frequency500Hz
Application in domestic- and commercial area permittedYes
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage22kW
Number of phases input3
Supporting protocol for DeviceNet SafetyNo
Max. output at quadratic load at rated output voltage22kW
Integrated breaking resistanceYes
Relative symmetric net frequency tolerance10%
Number of phases output3
Supporting protocol for PROFINET IOYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Degree of protection (NEMA)12
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Max. output voltage500V
Nominal output current I2N46A
Supporting protocol for SafetyBUS pNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

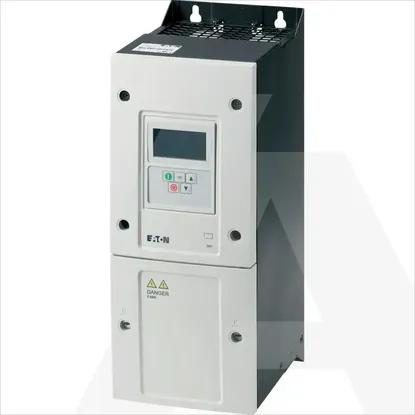

DA1-34046FB-B55C
