Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of HW-interfaces RS-4220
Number of digital outputs2
Power consumption840W
Supporting protocol for LONNo
Height485mm
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
Number of HW-interfaces RS-4851
Depth261mm
With control elementYes
Number of digital inputs5
Number of analogue outputs2
Width234mm
Number of HW-interfaces RS-2320
Number of interfaces PROFINET0
Supporting protocol for KNXNo
Supporting protocol for CANYes
Degree of protection (IP)IP20
Supporting protocol for DeviceNetYes
With PC connectionYes
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 480V
Number of HW-interfaces other0
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSYes
With optical interfaceNo
Supporting protocol for SUCONETNo
Number of HW-interfaces USB0
Supporting protocol for SERCOSNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces parallel0
4-quadrant operation possibleYes
Number of HW-interfaces serial TTY0
Mains frequency50/60 Hz
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Type of converterU converter
Supporting protocol for ASINo
Application in industrial area permittedYes
Supporting protocol for PROFINET IOYes
Max. output at linear load at rated output voltage30kW
Degree of protection (NEMA)Other
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Max. output at quadratic load at rated output voltage30kW
Number of phases input3
Nominal output current I2N61A
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Supporting protocol for BACnetNo
Number of phases output3
Relative symmetric net frequency tolerance10%
Max. output voltage500V
Application in domestic- and commercial area permittedYes
Integrated breaking resistanceYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

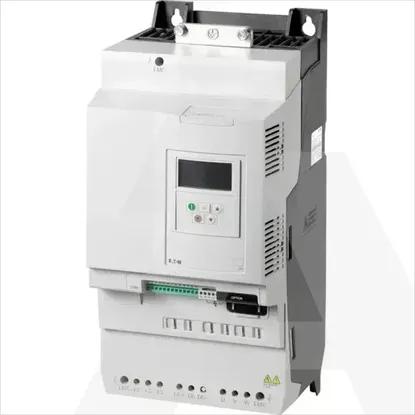

DA1-34061FB-B20C
