Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Width235mm
Height540mm
With control elementYes
Number of analogue inputs2
Number of digital inputs5
Depth270mm
Power consumption840W
Number of digital outputs2
Supporting protocol for LONNo
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces parallel0
Supporting protocol for ModbusYes
Supporting protocol for ASINo
Supporting protocol for DeviceNetYes
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Mains voltage380 - 480V
Number of HW-interfaces USB0
Supporting protocol for KNXNo
With optical interfaceNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIBUSYes
With PC connectionYes
4-quadrant operation possibleYes
Supporting protocol for TCP/IPYes
Supporting protocol for INTERBUSNo
Degree of protection (IP)IP55
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Number of HW-interfaces RS-4851
Supporting protocol for CANYes
Number of interfaces PROFINET0
Type of converterU converter
Relative symmetric net frequency tolerance10%
Relative symmetric net voltage tolerance10%
Number of phases output3
Max. output at linear load at rated output voltage30kW
Application in domestic- and commercial area permittedYes
Max. output at quadratic load at rated output voltage30kW
Number of phases input3
Integrated breaking resistanceYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
Max. output voltage500V
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Max. output frequency500Hz
Nominal output current I2N61A
Degree of protection (NEMA)12
Supporting protocol for PROFINET CBANo
Application in industrial area permittedYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

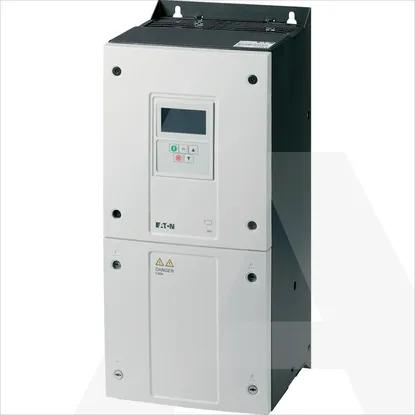

DA1-34061FB-B55C
