Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Width330mm
Supporting protocol for LONNo
Number of digital outputs2
Power consumption1800W
Depth313.5mm
Number of digital inputs5
Height865mm
Number of analogue outputs2
Number of HW-interfaces RS-2320
With control elementYes
Number of analogue inputs2
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Supporting protocol for PROFIBUSYes
Supporting protocol for SERCOSNo
Supporting protocol for ModbusYes
Supporting protocol for ASINo
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUSNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Supporting protocol for TCP/IPYes
Supporting protocol for SUCONETNo
With PC connectionYes
Number of HW-interfaces USB0
Supporting protocol for Data-HighwayNo
With optical interfaceNo
Supporting protocol for KNXNo
Number of HW-interfaces parallel0
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for CANYes
Supporting protocol for DeviceNetYes
Mains voltage380 - 480V
Degree of protection (IP)IP55
Number of interfaces PROFINET0
4-quadrant operation possibleYes
Number of phases output3
Supporting protocol for PROFINET IOYes
Application in domestic- and commercial area permittedYes
Relative symmetric net voltage tolerance10%
Number of phases input3
Type of converterU converter
Supporting protocol for Foundation FieldbusNo
Max. output frequency500Hz
Supporting protocol for PROFINET CBANo
Max. output voltage500V
Supporting protocol for AS-Interface Safety at WorkNo
Application in industrial area permittedYes
Supporting protocol for PROFIsafeNo
Max. output at quadratic load at rated output voltage90kW
Nominal output current I2N180A
Supporting protocol for EtherNet/IPYes
Max. output at linear load at rated output voltage90kW
Supporting protocol for BACnetNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net frequency tolerance10%
Supporting protocol for SafetyBUS pNo
Integrated breaking resistanceYes
Degree of protection (NEMA)12
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

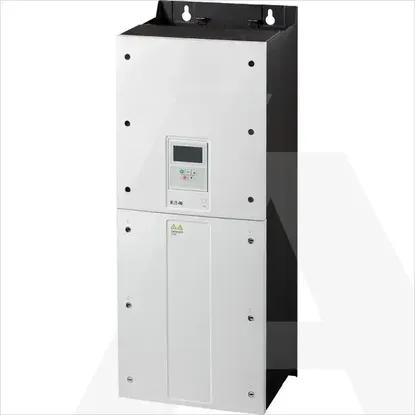

DA1-34180FB-B55C
