Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of digital inputs5
Number of HW-interfaces industrial Ethernet0
With control elementYes
Depth341mm
Width330mm
Supporting protocol for LONNo
Height1280mm
Number of analogue outputs2
Power consumption2090W
Number of digital outputs2
Number of analogue inputs2
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces other0
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPYes
With PC connectionYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Degree of protection (IP)IP55
Supporting protocol for PROFIBUSYes
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for CANYes
Supporting protocol for SUCONETNo
With optical interfaceNo
Supporting protocol for ASINo
Supporting protocol for SERCOSNo
Number of HW-interfaces parallel0
Number of interfaces PROFINET0
4-quadrant operation possibleYes
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 480V
Mains frequency50/60 Hz
Number of phases output3
Integrated breaking resistanceYes
Number of phases input3
Application in industrial area permittedYes
Max. output frequency500Hz
Type of converterU converter
Max. output at linear load at rated output voltage110kW
Supporting protocol for AS-Interface Safety at WorkNo
Max. output voltage500V
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for BACnetNo
Supporting protocol for EtherNet/IPYes
Nominal output current I2N202A
Relative symmetric net frequency tolerance10%
Supporting protocol for PROFIsafeNo
Degree of protection (NEMA)12
Relative symmetric net voltage tolerance10%
Supporting protocol for DeviceNet SafetyNo
Application in domestic- and commercial area permittedYes
Max. output at quadratic load at rated output voltage110kW
Supporting protocol for PROFINET IOYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

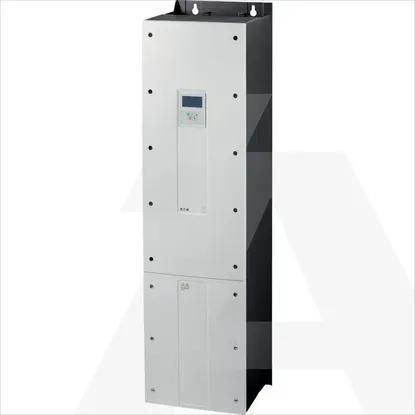

DA1-34202FB-B55C
