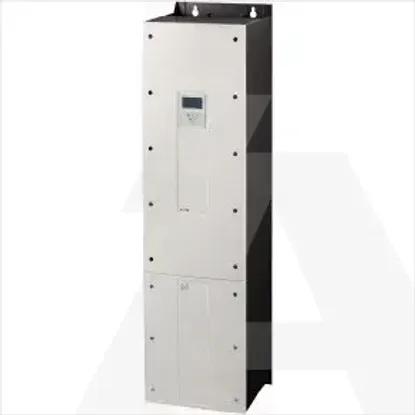

DA1-34302FB-B55C
Code: 1871687
Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Mains voltage380 - 480V
Relative symmetric net frequency tolerance10%
Max. output at linear load at rated output voltage160kW
Max. output at quadratic load at rated output voltage160kW
Power consumption3040W
Relative symmetric net voltage tolerance10%
Number of analogue outputs2
Nominal output current I2N302A
Number of digital inputs5
Supporting protocol for CANYes
Max. output voltage500V
Number of phases input3
Application in domestic- and commercial area permittedYes
Number of analogue inputs2
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Number of digital outputs2
Number of phases output3
Supporting protocol for PROFIBUSYes
Application in industrial area permittedYes
Supporting protocol for DeviceNetYes
Max. output frequency500Hz
With control elementYes
Mains frequency50/60 Hz
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Number of HW-interfaces other0
With optical interfaceNo
Integrated breaking resistanceYes
4-quadrant operation possibleYes
Type of converterU converter
Degree of protection (NEMA)12
Height1280mm
Width330mm
Degree of protection (IP)IP55
With PC connectionYes
Depth341mm
Supporting protocol for SUCONETNo
Supporting protocol for LONNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for BACnetNo
Supporting protocol for other bus systemsYes
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Supporting protocol for PROFIsafeNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces RS-4851
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
