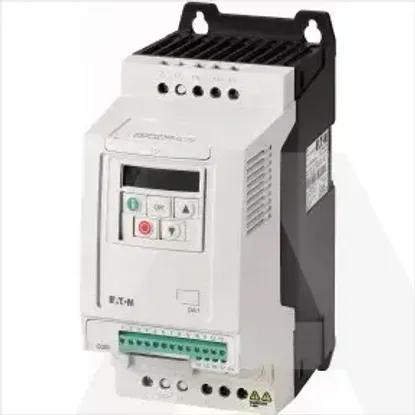

DA1-349D5FB-A20C

Name: DA1-349D5FB-A20C
Brand: EATON
Price: 1465.44 EUR
Availability: BackOrder

Code: 1871696

ManufacturerEaton (Moeller)

Catalog number169054

TypeLow-voltage industrial components

EAN code4015081655458

‌

‌
‌
‌
‌

‌

‌
‌

‌

Details

•Low-voltage industrial components
•Frequency converter =< 1 kV
•1 KOM
•EATON

Technical specifications

Mains frequency50/60 Hz

Mains voltage380 - 480V

Max. output frequency500Hz

Relative symmetric net voltage tolerance10%

Number of phases input3

Max. output at quadratic load at rated output voltage4kW

Number of analogue outputs2

Power consumption136W

Max. output at linear load at rated output voltage4kW

Max. output voltage500V

Number of phases output3

Relative symmetric net frequency tolerance10%

Nominal output current I2N9.5A

Number of analogue inputs2

Supporting protocol for TCP/IPYes

Supporting protocol for PROFIBUSYes

Application in domestic- and commercial area permittedYes

Supporting protocol for Data-HighwayNo

Supporting protocol for INTERBUSNo

Supporting protocol for ModbusYes

Supporting protocol for DeviceNetYes

Supporting protocol for PROFINET CBANo

Supporting protocol for CANYes

Number of digital outputs2

With control elementYes

Number of digital inputs5

Application in industrial area permittedYes

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for KNXNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for SERCOSNo

Supporting protocol for other bus systemsYes

Number of HW-interfaces RS-4851

Supporting protocol for AS-Interface Safety at WorkNo

Supporting protocol for BACnetNo

Number of HW-interfaces industrial Ethernet0

Number of HW-interfaces serial TTY0

Supporting protocol for SafetyBUS pNo

Supporting protocol for LONNo

Supporting protocol for INTERBUS-SafetyNo

Supporting protocol for ASINo

Number of HW-interfaces other0

Supporting protocol for PROFIsafeNo

Number of HW-interfaces RS-2320

Number of HW-interfaces parallel0

Supporting protocol for EtherNet/IPYes

Supporting protocol for PROFINET IOYes

Number of HW-interfaces USB0

Number of HW-interfaces RS-4220

Number of interfaces PROFINET0

Supporting protocol for SUCONETNo

With optical interfaceNo

With PC connectionYes

4-quadrant operation possibleYes

Degree of protection (IP)IP20

Type of converterU converter

Integrated breaking resistanceYes

Height231mm

Degree of protection (NEMA)Other

Width107mm

Depth186mm

Related products
