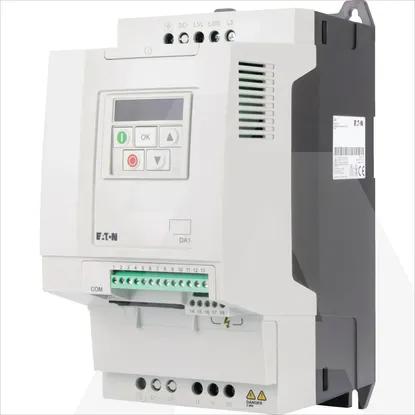

DA1-35012NB-A20C

Name: DA1-35012NB-A20C
Brand: EATON
Price: 2689.31 EUR
Availability: BackOrder

Code: 1871699

ManufacturerEaton (Moeller)

Catalog number177039

TypeLow-voltage industrial components

EAN code4015081714827

‌

‌
‌
‌
‌

‌

‌
‌

‌

Details

•Low-voltage industrial components
•Frequency converter =< 1 kV
•1 KOM
•EATON

Technical specifications

Mains voltage500 - 600V

Number of phases input3

Mains frequency50/60 Hz

With control elementYes

Number of digital inputs5

Power consumption225W

Number of analogue inputs2

Nominal output current I2N12A

Max. output frequency500Hz

Number of analogue outputs2

Relative symmetric net voltage tolerance10%

Max. output at linear load at rated output voltage7.5kW

Supporting protocol for DeviceNetYes

Supporting protocol for CANYes

Number of digital outputs2

Supporting protocol for LONNo

Supporting protocol for PROFINET CBANo

Supporting protocol for KNXNo

Supporting protocol for ASINo

Supporting protocol for PROFINET IOYes

Max. output at quadratic load at rated output voltage7.5kW

Supporting protocol for SafetyBUS pNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for BACnetNo

Supporting protocol for TCP/IPYes

Supporting protocol for EtherNet/IPYes

Application in industrial area permittedYes

Number of HW-interfaces industrial Ethernet0

Application in domestic- and commercial area permittedYes

Supporting protocol for INTERBUSNo

Supporting protocol for ModbusYes

Supporting protocol for PROFIsafeNo

Number of HW-interfaces RS-4220

Number of HW-interfaces serial TTY0

Supporting protocol for SERCOSNo

Number of phases output3

Supporting protocol for AS-Interface Safety at WorkNo

Number of interfaces PROFINET0

Supporting protocol for other bus systemsYes

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for SUCONETNo

Number of HW-interfaces parallel0

Supporting protocol for INTERBUS-SafetyNo

Relative symmetric net frequency tolerance10%

Supporting protocol for Data-HighwayNo

Number of HW-interfaces RS-4851

Number of HW-interfaces RS-2320

Supporting protocol for PROFIBUSYes

Max. output voltage600V

Number of HW-interfaces USB0

With PC connectionYes

Number of HW-interfaces other0

4-quadrant operation possibleYes

With optical interfaceNo

Type of converterU converter

Integrated breaking resistanceYes

Degree of protection (NEMA)Other

Degree of protection (IP)IP20

Width131mm

Height273mm

Depth204mm
