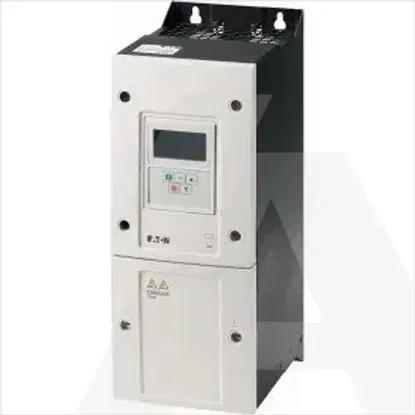

DA1-35034NB-B55C
Code: 1871710
Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of phases output3
Mains voltage500 - 600V
Number of phases input3
Mains frequency50/60 Hz
Max. output frequency500Hz
Number of HW-interfaces other0
With optical interfaceNo
With PC connectionYes
Integrated breaking resistanceYes
4-quadrant operation possibleYes
Type of converterU converter
Degree of protection (NEMA)12
Degree of protection (IP)IP55
Height450mm
Width173mm
Max. output voltage600V
Nominal output current I2N34A
Max. output at quadratic load at rated output voltage22kW
Power consumption660W
Relative symmetric net frequency tolerance10%
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage22kW
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs2
With control elementYes
Application in industrial area permittedYes
Number of digital inputs5
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for LONNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Depth240mm
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Supporting protocol for other bus systemsYes
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
