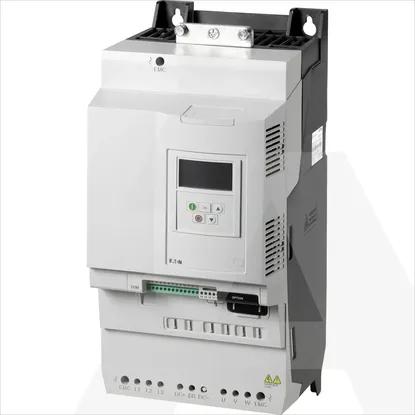

Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •EATON

Technical specifications

Width234mm
Number of HW-interfaces RS-4220
Depth261mm
Number of HW-interfaces RS-2320
Number of analogue inputs2
Power consumption850W
Supporting protocol for LONNo
Number of digital inputs5
Number of analogue outputs2
Height485mm
Number of HW-interfaces industrial Ethernet0
With control elementYes
Number of digital outputs2
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Number of HW-interfaces RS-4851
Supporting protocol for ModbusYes
With optical interfaceNo
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Number of HW-interfaces other0
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPYes
Number of HW-interfaces USB0
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
With PC connectionYes
Supporting protocol for other bus systemsYes
Supporting protocol for DeviceNetYes
Application in industrial area permittedYes
Type of converterU converter
Max. output frequency500Hz
Application in domestic- and commercial area permittedYes
Integrated breaking resistanceYes
Max. output voltage600V
Relative symmetric net frequency tolerance10%
Degree of protection (NEMA)Other
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Supporting protocol for PROFINET CBANo
Max. output at quadratic load at rated output voltage22kW
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Degree of protection (IP)IP20
Mains voltage500 - 600V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage22kW
Nominal output current I2N41A
