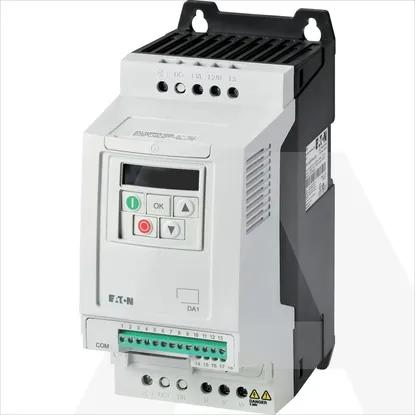

Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Height231mm
Number of digital inputs5
Depth186mm
With control elementYes
Width107mm
Power consumption45W
Number of digital outputs2
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Number of analogue outputs2
Number of analogue inputs2
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4851
Number of HW-interfaces USB0
With optical interfaceNo
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Number of HW-interfaces other0
Number of HW-interfaces RS-2320
Supporting protocol for PROFIBUSYes
Supporting protocol for KNXNo
Supporting protocol for CANYes
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetYes
Supporting protocol for TCP/IPYes
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
Supporting protocol for ASINo
Supporting protocol for INTERBUS-SafetyNo
Mains frequency50/60 Hz
With PC connectionYes
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
Mains voltage500 - 600V
Integrated breaking resistanceYes
Type of converterU converter
Number of interfaces PROFINET0
4-quadrant operation possibleYes
Number of phases input3
Application in industrial area permittedYes
Number of phases output3
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance10%
Application in domestic- and commercial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Max. output at quadratic load at rated output voltage1.5kW
Max. output at linear load at rated output voltage1.5kW
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Degree of protection (NEMA)Other
Supporting protocol for SafetyBUS pNo
Max. output voltage600V
Supporting protocol for PROFINET IOYes
Nominal output current I2N3.1A
