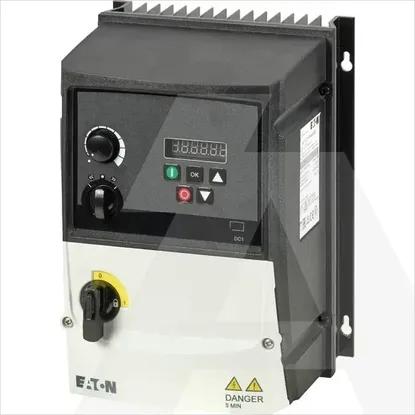

DC1-12011FB-A6SOE1
Code: 1871737
Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Max. output frequency500Hz
Mains frequency50/60 Hz
Nominal output current I2N11A
Max. output at linear load at rated output voltage2.2kW
Number of phases output3
Relative symmetric net frequency tolerance10%
Max. output at quadratic load at rated output voltage2.2kW
Max. output voltage250V
With control elementYes
Number of phases input1
Number of digital outputs1
Power consumption103.4W
Number of analogue inputs2
Application in industrial area permittedYes
Mains voltage200 - 240V
Number of digital inputs4
Relative symmetric net voltage tolerance10%
Number of analogue outputs1
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Application in domestic- and commercial area permittedYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for LONNo
Supporting protocol for SUCONETNo
Number of HW-interfaces other0
With optical interfaceNo
With PC connectionYes
Integrated breaking resistanceYes
4-quadrant operation possibleYes
Type of converterU converter
Degree of protection (IP)IP66
Degree of protection (NEMA)4X
Height257mm
Width188mm
Depth182mm
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for other bus systemsYes
Supporting protocol for BACnetNo
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4851
Number of interfaces PROFINET0
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
